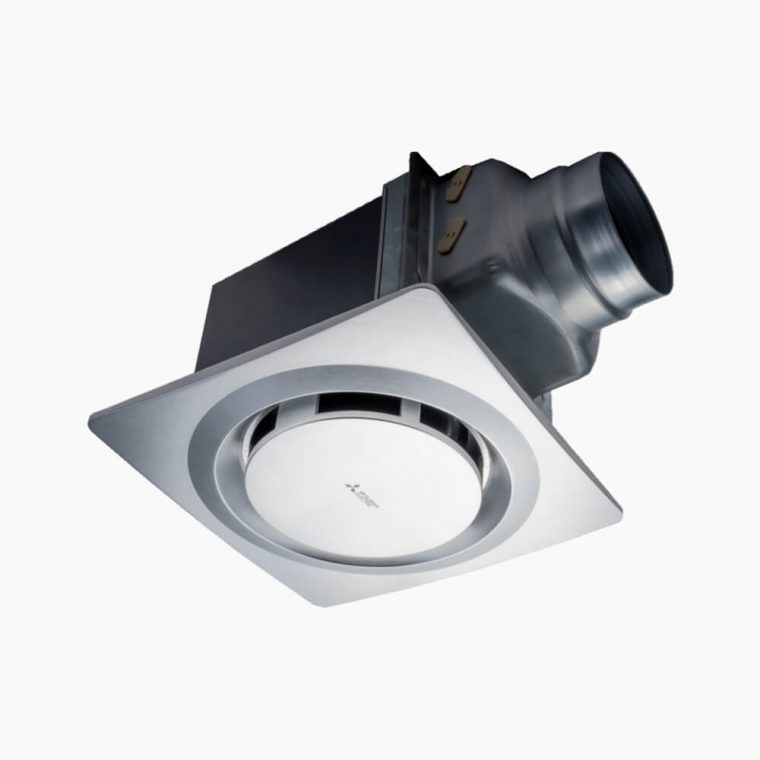

10″ Duct Type Stylish Plastic Grille Ventilator
Mitsubishi Electric’s new grille design. Humidity-resistant plastic grille, that is equipped with back-draft shutter. Easy slide-type installation and removal. The grille is a snap-fit type that makes cleaning less hassle.
• 3 Years Motor Warranty
• Premium Safety Standard
• Non-Self Flammable Material
• Double Fuse Protection
• Conceal Motor
• Pressure-type with centrifugal fan
• Quick connect terminal
Model / Size
VD-10Z4T6-N (10inch)
VD-15Z4T6-N (12 inch)
VD-15ZP4T6-N (12 inch)
In store stocks availability are subject to respective retailers.
Specifications
| General | VD-10Z4T6-N | VD-15Z4T6-N | VD-15ZP4T6-N |
|---|---|---|---|
| Grill Dimension W x H x D (mm) | 250 x 250 x 20 | 250 x 250 x 20 | 250 x 250 x 20 |
| Ceiling Recess Size (mm) | 180 x 180 | 260 x 260 | 260 x 260 |
| Technical Specification | |||
| Rated Voltage (V) | 220 - 240 | 220 - 240 | 220 - 240 |
| Frequency (Hz) | 50 | 50 | 50 |
| Power Consumption (W) | 9 - 11 | 12 - 14 | 17 - 20 |
| RPM | 900 - 980 | 670 - 750 | 870 - 950 |
| Air Flow Rate (m3/h) | 100 - 110 | 157 - 182 | 217 - 240 |
| Air Flow Rate (CFM) | 59 - 65 | 92 - 107 | 128 - 141 |
| Noise (dB) | 29 - 32 | 28 - 32 | 35 - 38.5 |
| Weight (kg) | 2.2 | 3.4 | 3.4 |
Main features
Grille Design With Modern Style
Designed to meet the needs of all lifestyles, the new grille on our Mitsubishi Electric Ventilation Fan now comes with a sleek and modern metallic appearance.
Grille Design With Modern Style
Designed to meet the needs of all lifestyles, the new grille on our MITSUBISHI Ventillation Fan now comes with a sleek and modern metallic appearance.
Humidity-resistant Plastic Grille
3 Years Motor Warranty For A Peace Of Mind
Product Safety & Quality
Helps you and your family to be comfortable and free from worries for safety with Mitsubishi Electric ventilators.
Premium Safety Standards
Non Self-Flammable Materials
Double Fuse Protection
Conceal Motor
Reasons to choose
Mitsubishi Electric Wall
Ventilation Fans.
Learn more about how Mitsubishi Electric ventilation fans can meet the needs of just about any building.
Tips on Choosing the Right Ventilation Fan for Your Rooms
First, calculate the capacity of the room and multiply by the required air exchange rate for the type of room. You can refer to the tables in the 3rd image. In offices for example, the capacity should be multiplied by 6, while for kitchens you multiply it by 15. This gives the airflow rate you should go for in a ventilation fan.
