18″ Duct Type Plastic Grille Ventilator (Large)
Suitable for commercial applications yet quiet and stylish for domestic use. Featuring a plastic grille, this ventilator is ideal for a wide variety of applications from bathrooms and laundries to offices and living areas.
• 3 Years Motor Warranty
• Premium Safety Standard
• Non-Self Flammable Material
• Double Fuse Protection
• Conceal Motor
• Pressure-type with centrifugal fan
• Quick connect terminal
Model / Size

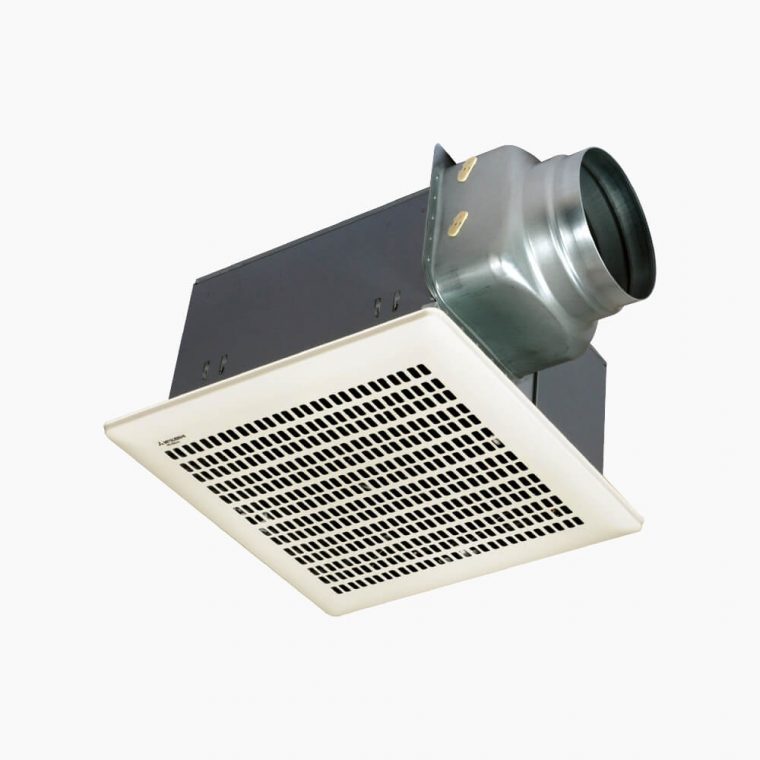

VD-23Z4T5 (18 inch)
VD-23ZP4T5 (18 inch)
In store stocks availability are subject to respective retailers.
Specifications
| General | VD-23Z4T5 | VD-23ZP4T5 |
|---|---|---|
| Grill Dimension W x H x D (mm) | 474 x 474 x 15 | - |
| Ceiling Recess Size (mm) | 424 x 424 | - |
| Technical Specification | ||
| Rated Voltage (V) | 220 - 240 | 220 - 240 |
| Frequency (Hz) | 50 | 50 |
| Power Consumption (W) | 75 - 87 (High Power) 37 - 43 (Low Power) |
95 - 107 (High Power) 59 - 67 (Low Power) |
| RPM | 650 - 720 (High Power) 440 - 480 (Low Power) |
930 - 980 (High Power) 600 - 660 (Low Power) |
| Air Flow Rate (m3/h) | 580 - 630 (High Power) 360 - 390 (Low Power) |
715 - 770 (High Power) 450 - 490 (Low Power) |
| Air Flow Rate (CFM) | 341 - 371 (High Power) 212 - 230 (Low Power) |
421 - 453 (High Power) 265 - 288 (Low Power) |
| Noise (dB) | 46 - 48 (High Power) 35 - 37 (High Power) |
48 - 50 (High Power) 39 - 41 (High Power) |
| Weight (kg) | 8.6 | 9.7 |
Main features

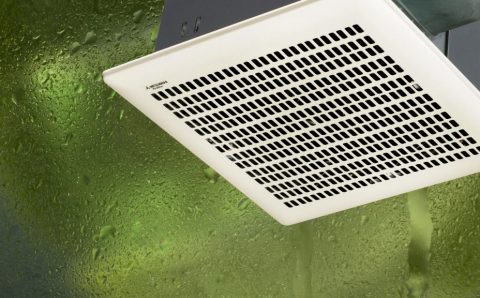

Humidity and Pest-resistant Plastic Grille
3 Years Motor Warranty For A Peace Of Mind
Product Safety & Quality
Helps you and your family to be comfortable and free from worries for safety with Mitsubishi Electric ventilators.
Premium Safety Standards
Non Self-Flammable Materials
Double Fuse Protection
Conceal Motor
Reasons to choose
Mitsubishi Electric Wall
Ventilation Fans.
Learn more about how Mitsubishi Electric ventilation fans can meet the needs of just about any building.
Tips on Choosing the Right Ventilation Fan for Your Rooms
First, calculate the capacity of the room and multiply by the required air exchange rate for the type of room. You can refer to the tables in the 3rd image. In offices for example, the capacity should be multiplied by 6, while for kitchens you multiply it by 15. This gives the airflow rate you should go for in a ventilation fan.
