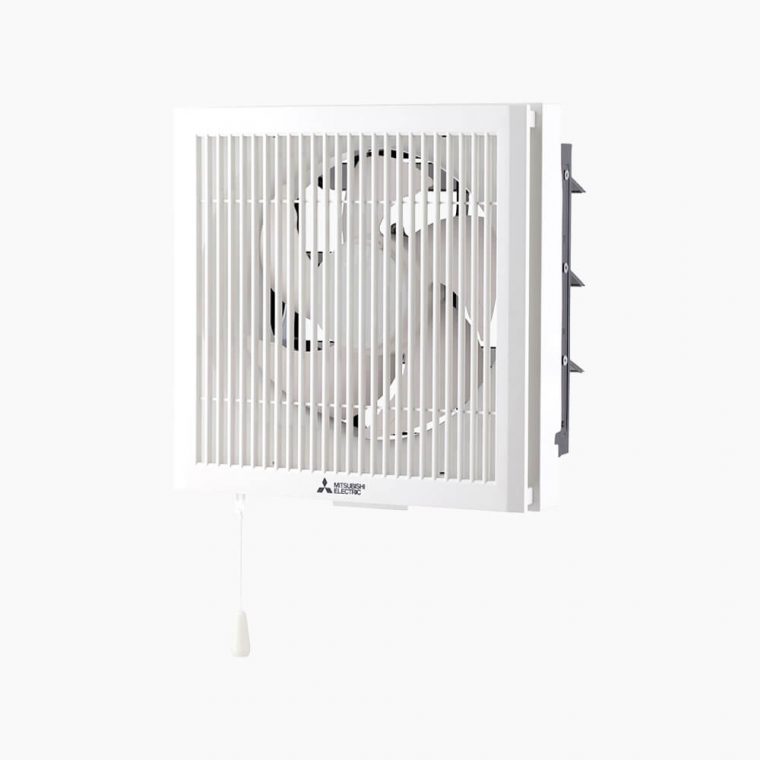

8″ Wall-Mounted Ventilator with Grille
Equipped with stylish grille. Operates quietly, energy efficient and easy to clean. Suitable for shop, working room, living room & kitchen.
• 3 Years Motor Warranty
• Premium Safety Standard
• Non-Self Flammable Material
• Double Fuse Protection
• Conceal Motor
• Exhaust Type
Model / Size
EX-20SKC5T (8 inch)
EX-25SKC5T (10 inch)
In store stocks availability are subject to respective retailers.
Specifications
| General | EX-20SKC5T | EX-25SKC5T |
|---|---|---|
| Grill Dimension W x H x D (mm) | 296 x 296 x 64 | 346 x 346 x 60 |
| Wood Frame Inner Dimension (mm) | 250 x 250 | 300 x 300 |
| Technical Specification | ||
| Rated Voltage (V) | 230 - 240 | 230 - 240 |
| Frequency (Hz) | 50 | 50 |
| Power Consumption (W)/td> | 17 - 19 | 25 - 26 |
| RPM | 1300 - 1320 | 1030 - 1080 |
| Air Flow Rate (m3/h) | 540 - 550 | 820 - 860 |
| Air Flow Rate (CFM) | 318 - 324 | 483 - 506 |
| Noise (dB) | 39 - 40 | 39 - 40 |
| Weight (kg) | 2.3 | 2.7 |
Main features
Easy-to-clean Propeller
Extra Winglet Fan
Compact Yet Powerful
3 Years Motor Warranty For A Peace Of Mind
Product Safety & Quality
Helps you and your family to be comfortable and free from worries for safety with Mitsubishi Electric ventilators.
Premium Safety Standards
Non Self-Flammable Materials
Double Fuse Protection
Conceal Motor
Reasons to choose
Mitsubishi Electric Wall
Ventilation Fans.
Learn more about how Mitsubishi Electric ventilation fans can meet the needs of just about any building.
Tips on Choosing the Right Ventilation Fan for Your Rooms
First, calculate the capacity of the room and multiply by the required air exchange rate for the type of room. You can refer to the tables in the 3rd image. In offices for example, the capacity should be multiplied by 6, while for kitchens you multiply it by 15. This gives the airflow rate you should go for in a ventilation fan.
